suñůlink.shield · to scale

one shield.
drawn to scale.

A mesh node on the back of your phone, drawn from the same CAD that machines it.

Ceramic powder-coated titanium or anti-microbial pure brass, both rust-proof. Set with the ñü.isheru gemstone, platinum, and a laser-etched pyrite hexagon, the mirror of the Triangulum constellation. CNC’d to add 0 mm to your phone, based on the camera bump.

Drag to turn. On iPhone or Android, tap “View in your space” to see it at real size.

Buy Full specifications

0 mm: Above the lenses: your iPhone gets no thicker
4.7 mm: On the back, level with the lens tops
7.5 Wh: Its own battery, about 6 hours relaying
600 m: Shield to shield, or 2 km to a rooftop node

Figures for iPhone 18 Pro. Battery life varies with use and settings. Ranges are calculated from the HaLow link budget on open ground; see the full specifications.

suñůlink.shield

your phone becomes part of the network.

A post-quantum mesh transceiver in a battleproof titanium shell, machined to your phone’s own curves. It turns the phone into a node: it carries traffic for the people around you, keeps your messages flowing when Apple’s push service can’t be trusted, and earns while it works.

6 hours: relaying on a full charge, then a sip of your iPhone’s battery
15 min: to 50% over USB-C from a wall charger or power bank, full in about 45
Clear: over the camera, with an opening for every lens, cut out of its view

Fits iPhone X and later · Google Pixel · Samsung Galaxy S and AThe khėnsu.ñü app needs iPhone 11 or later. On older iPhones and on Android, the shield runs as a node. Battery life and charge time vary with use and settings.

side view

zero millimetres. no new bump.

The shield covers the whole back, camera included, and stops level with the lens tops, so it adds nothing above the camera. Every lens, the flash and the sensors get their own opening, cut so none of them ever sees it, even the ultra wide at 120°. Inside that depth: a 7.5 Wh battery, about six hours of relaying on its own cells.

Each shield is CNC-machined from titanium for a precise fit, following the iPhone 18 Pro’s own edge curve, so the shield picks up where the phone’s edge leaves off. No step, no lip, one seamless shape.

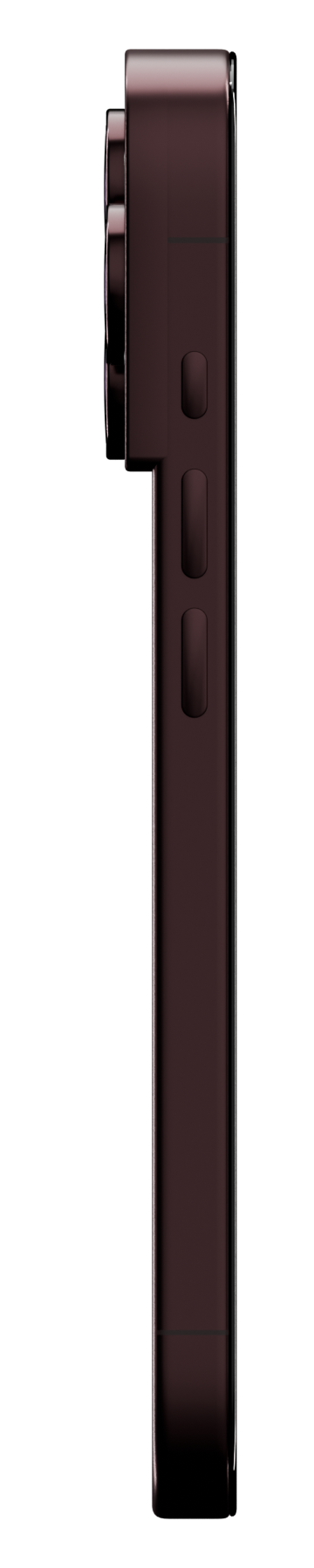

iPhone 18 Pro in Burgundy standing upright, seen exactly from the side: only its thin aluminium edge and the camera lenses standing proud of the back. — iphone 18 pro

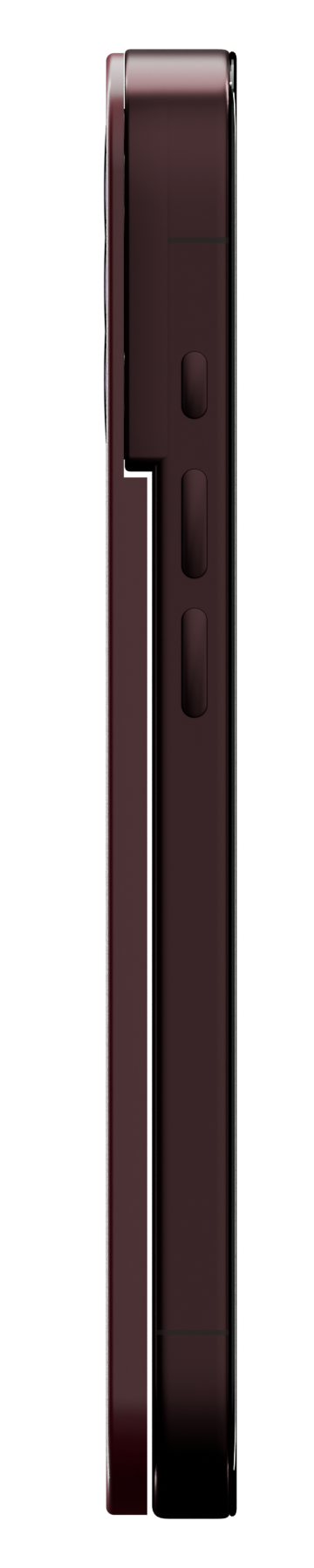

The same iPhone 18 Pro with suñůlink.shield attached, seen exactly from the side at the same scale: the shield covers the back below the camera, its face flush with the lens tops, so it adds no bump above the camera. — with suñůlink.shield

0 mm: added above the lens tops, clear of every camera’s field of view.

Path-traced to scale from the CAD model, on iPhone 18 Pro geometry measured from Apple’s published model; Apple’s accessory drawings take precedence when available. Relay time at about 1 W; battery life varies with use and settings. iPhone is a trademark of Apple Inc.

designed for iPhone 18 Pro and Pro Max

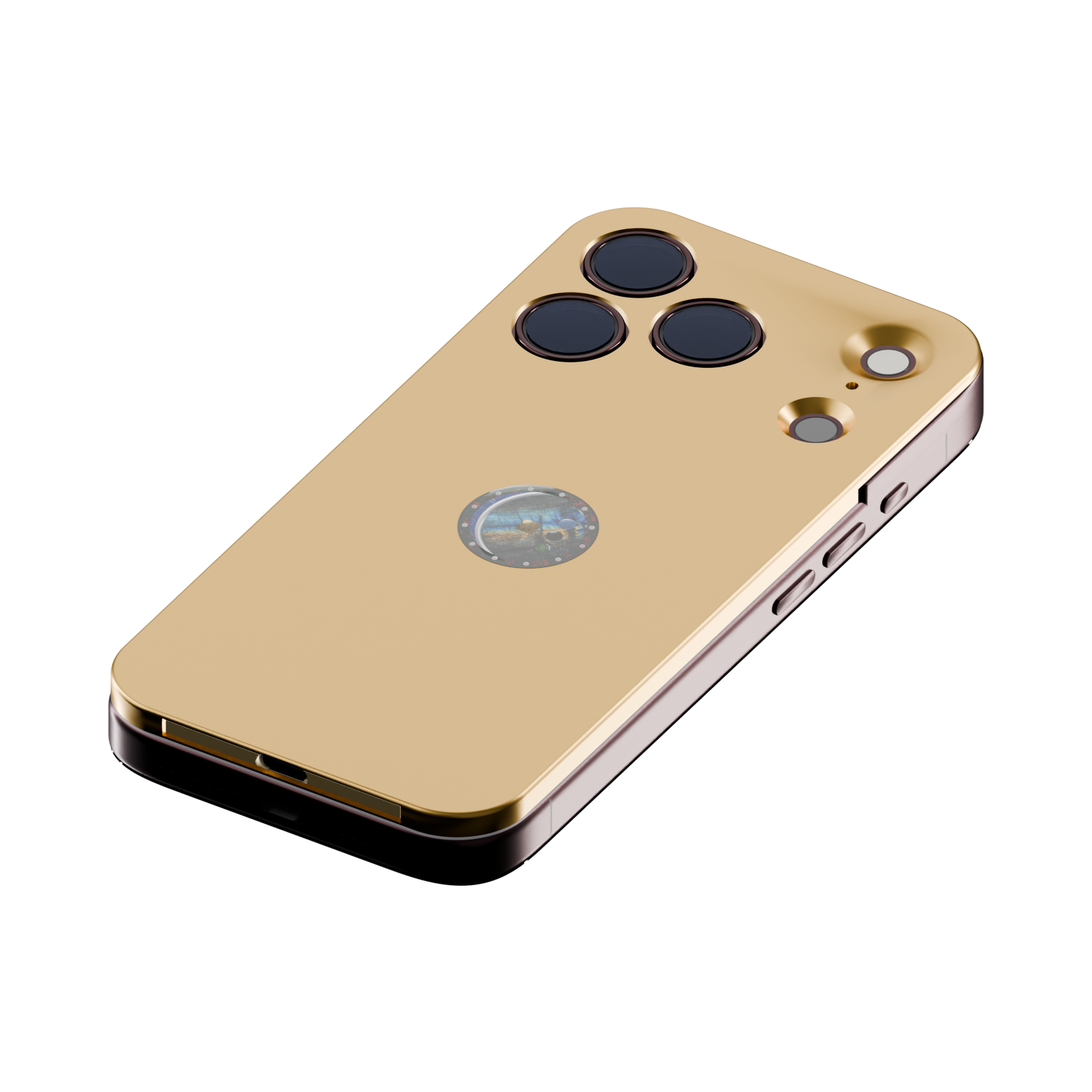

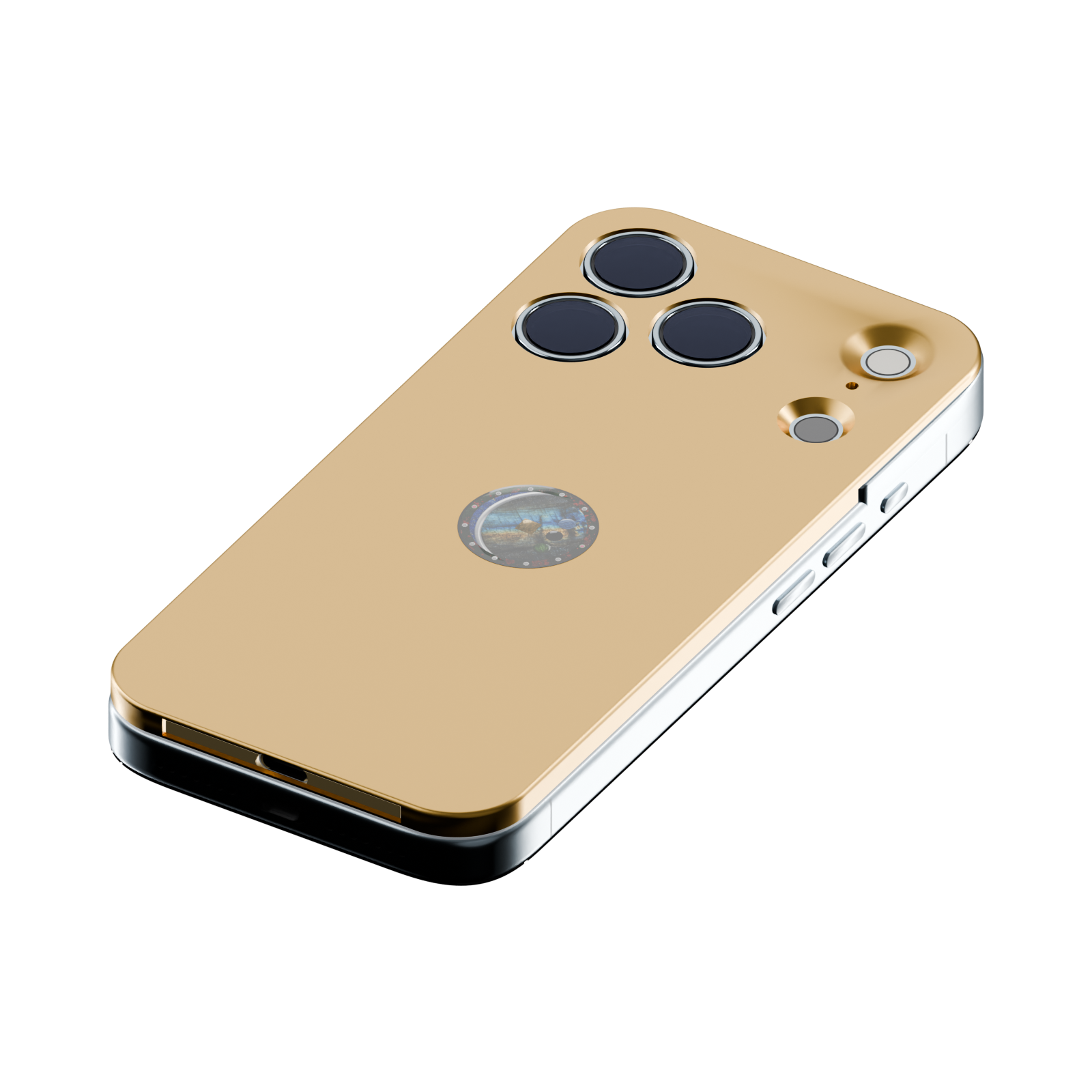

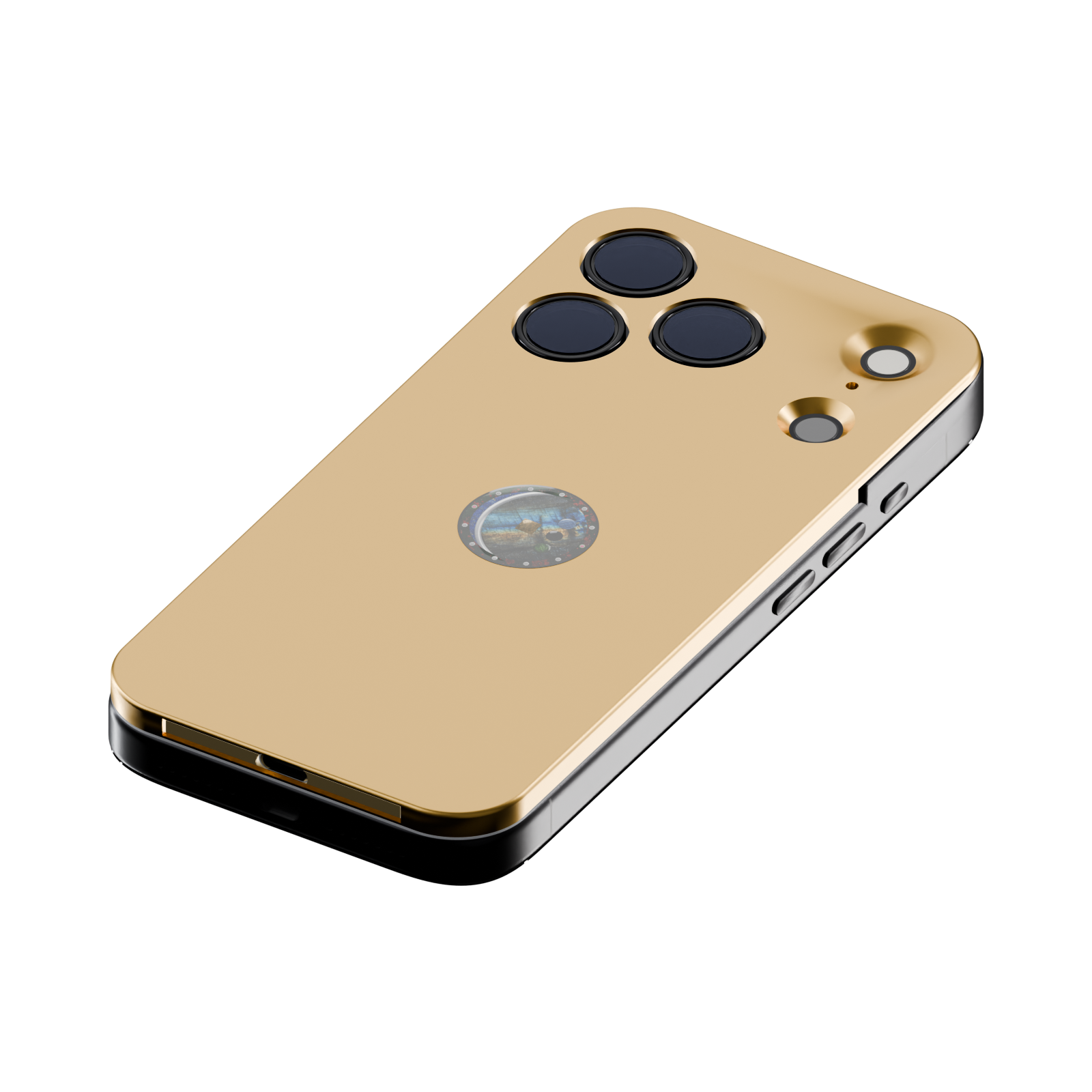

your colour. or solid brass.

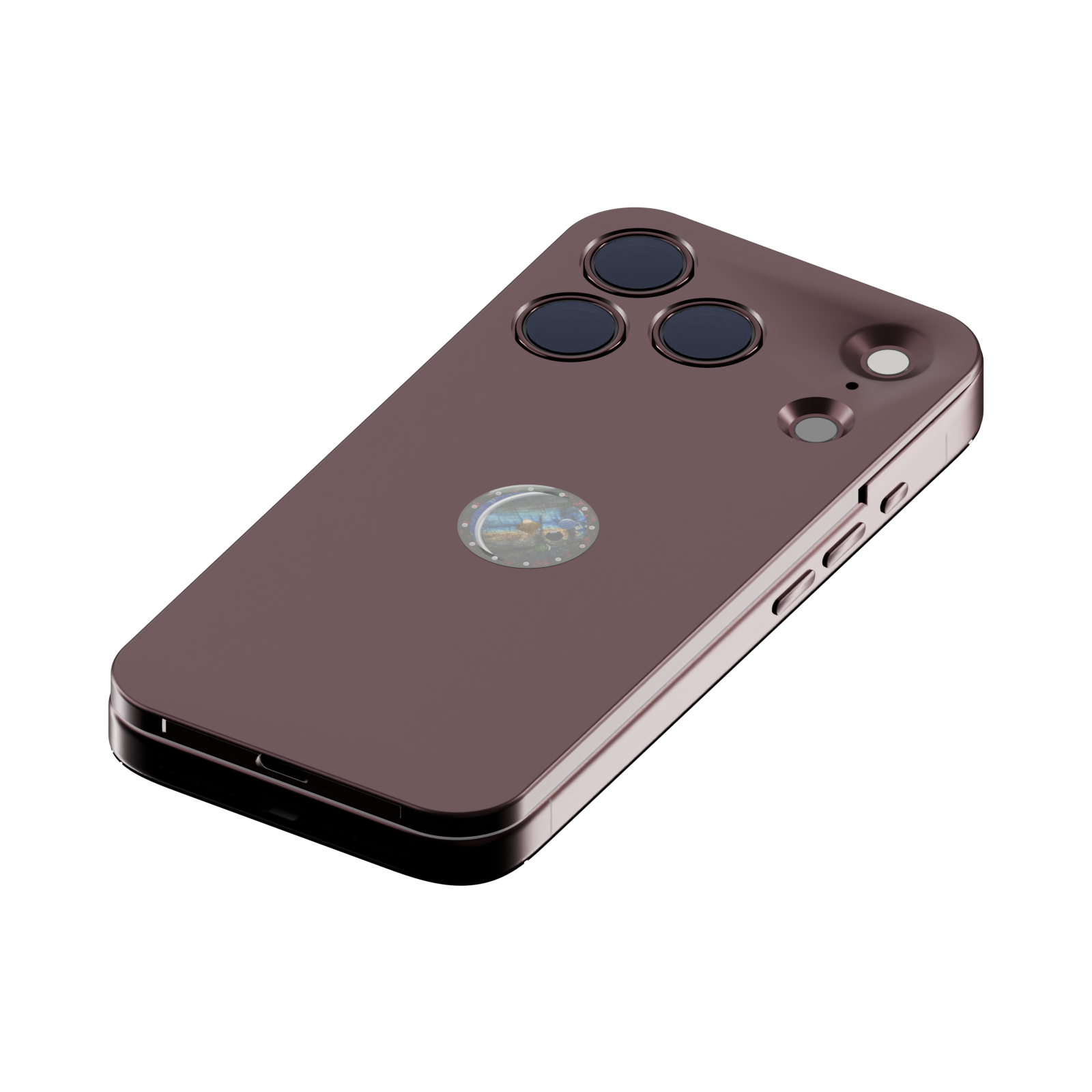

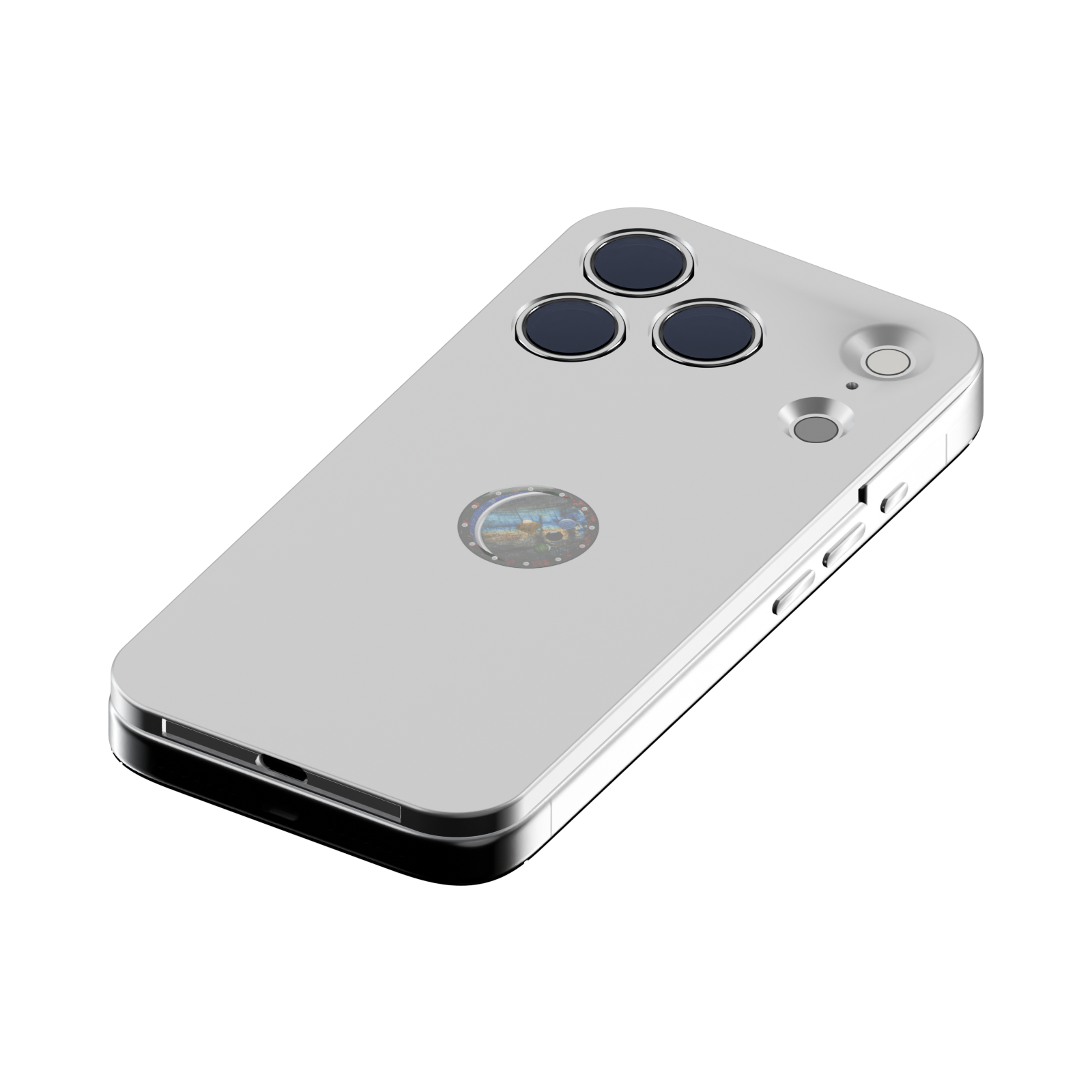

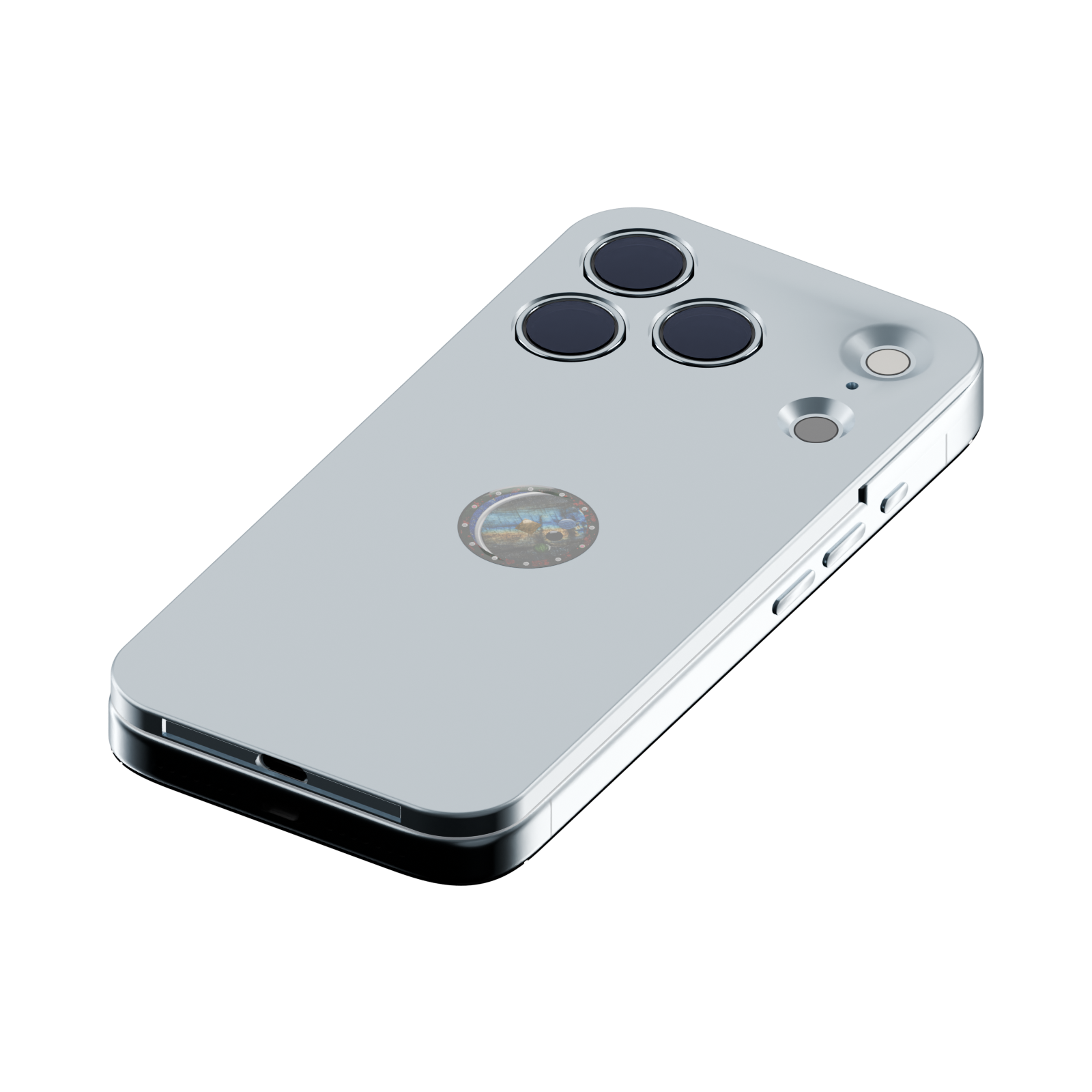

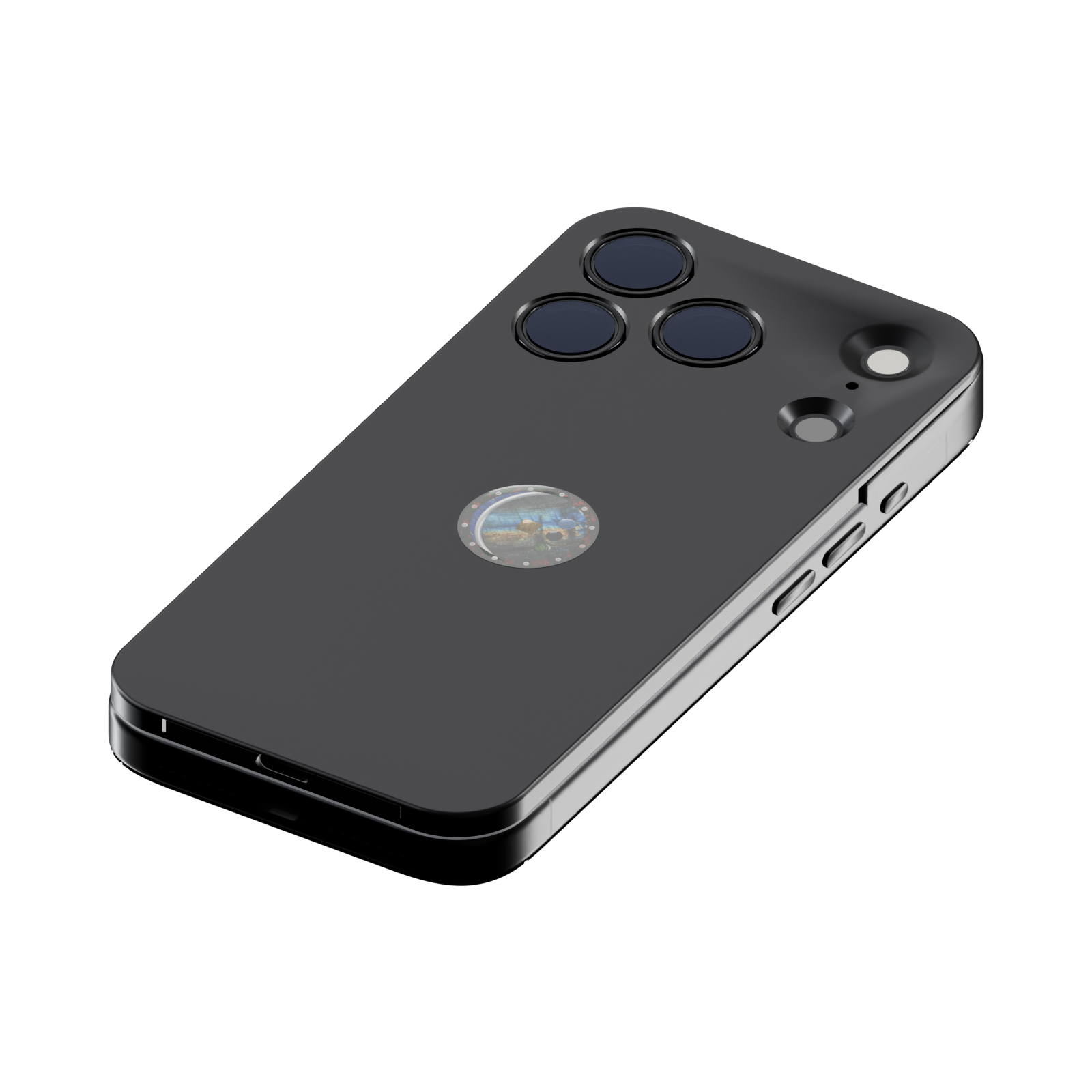

Ceramic powder-coated titanium in every iPhone 18 Pro and Pro Max finish, so it looks like part of the phone and doesn’t show fingerprints. Grade 5 titanium is about 1.6 times as strong as the aluminium iPhone 18 Pro is made of, and a shock-absorbing layer underneath takes the sting out of drops. Or bare brass, a copper alloy that kills bacteria on its surface and never rusts. Either way it sits level with the lens tops, adding nothing above the camera, with the lenses, the flash and the sensors clear in its opening.

Renders from the CAD model, on iPhone 18 Pro geometry measured from Apple’s published model. Brass is heavier than titanium (about 136 g against 95 g) and ages to a warm patina shaped by your hands, how you carry it and the air it lives in, so no two brass sunulink.shields end up alike. It is left uncoated, since a coating would stop it working on germs. Brass still needs regular cleaning, like any surface. iPhone is a trademark of Apple Inc., registered in the U.S. and other countries; finish names are Apple’s. Not affiliated with or endorsed by Apple.

one suñůlink.shield

6 hours
Relaying on a full charge of its own 7.5 Wh battery. When that runs out, it sips a little of your iPhone’s over the short cable in the box (iPhone 15 or later).
15 min
To 50% over its USB-C from a wall charger or power bank, full in about 45. Your iPhone’s port stays open.
0 mm
Added above the camera: one flat back level with the lens tops, an opening for every lens.
95 g
In titanium. Solid brass is about 136 g.

One model for iPhone 18 Pro and Pro Max, and for iPhone 18 on its release, in your iPhone’s colour, matte titanium or solid brass. Figures for iPhone 18 Pro. Battery life at about 1 W of relaying; charge times with a 20 W or larger USB-C PD charger. Battery life and charge time vary with use and settings. From your iPhone it takes at most 1 W, roughly 5–8% of the iPhone’s battery an hour. It clears every lens, flash and sensor, and every camera’s field of view.

Full suñůlink.shield specifications

Fits every iPhone back to iPhone X, and Google Pixel and Samsung Galaxy phones, flagship and everyday, with a case made for each model. Drawn here on the two reference shapes: iPhone 18 Pro’s full-width camera plateau, and a camera island like most other phones. HaLow radio for the neighbourhood mesh, Wi-Fi and Bluetooth to the phone, charged over USB-C from a wall charger or power bank.

suñůlink.shield on the iPhone 18 Pro

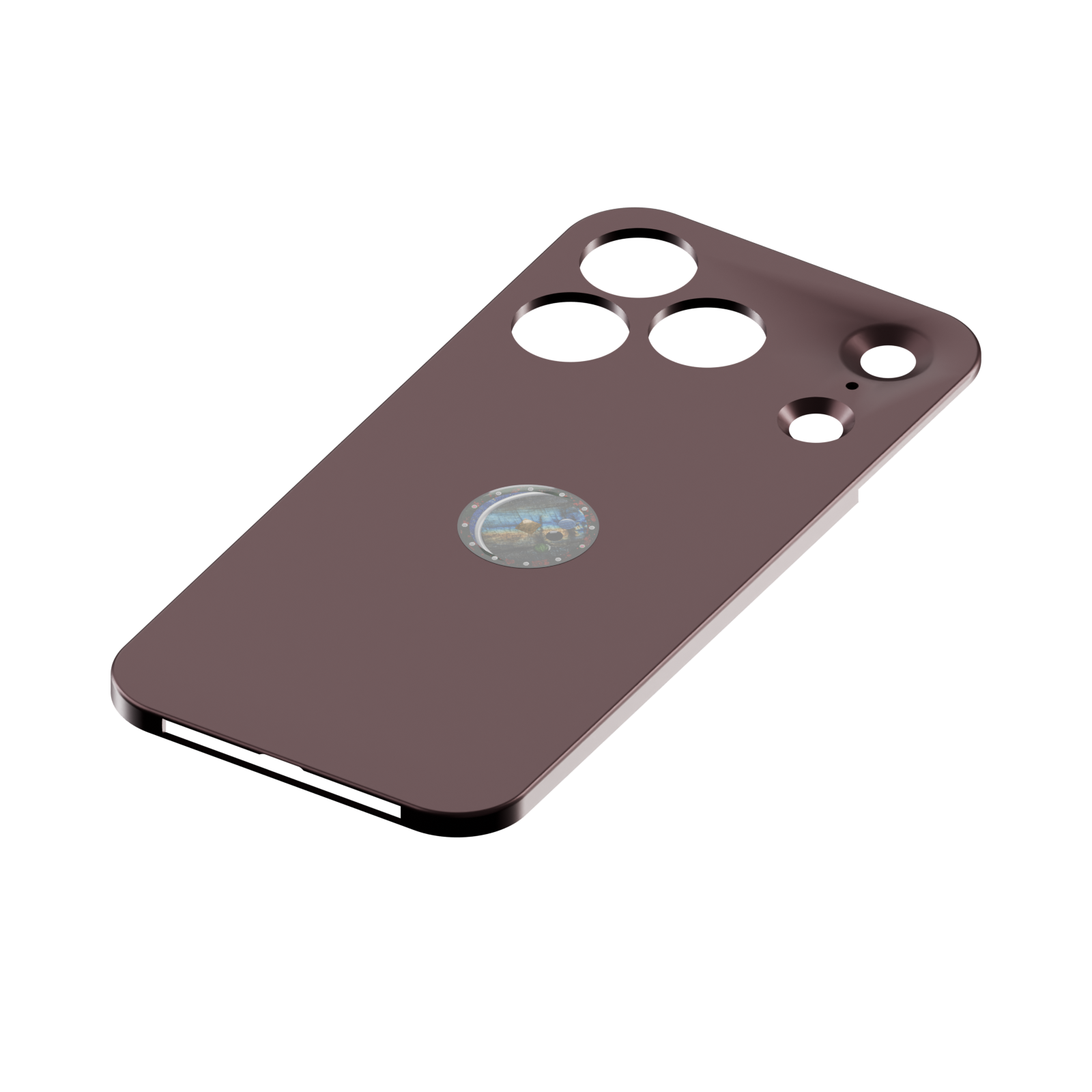

The whole back, a flat plate over the camera plateau level with the lens tops, with an opening for every lens, the flash and the sensors.

7.5 Wh: battery, 16.6 cm³ of cells
4.68 mm: thick, 0 mm above the lens tops
95 g: in titanium
about 6 h: relaying on its own cells

Footprint 71 × 149.2 mm. Magnet ring 56 mm. Charges over its USB-C from a wall charger or power bank. When its cells run out it takes a little from the phone over a short USB-C cable.

section through the magnet centre

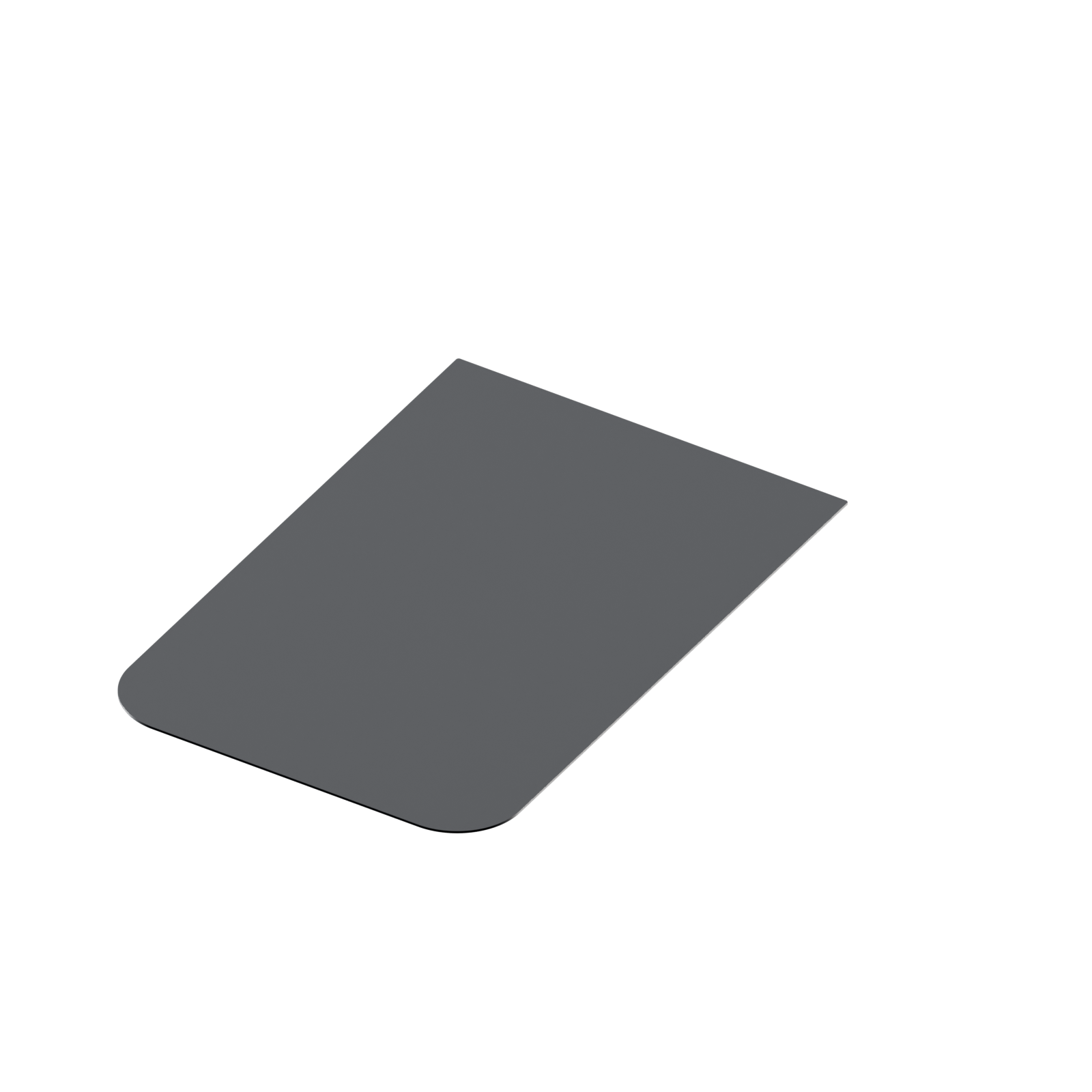

Shield outline

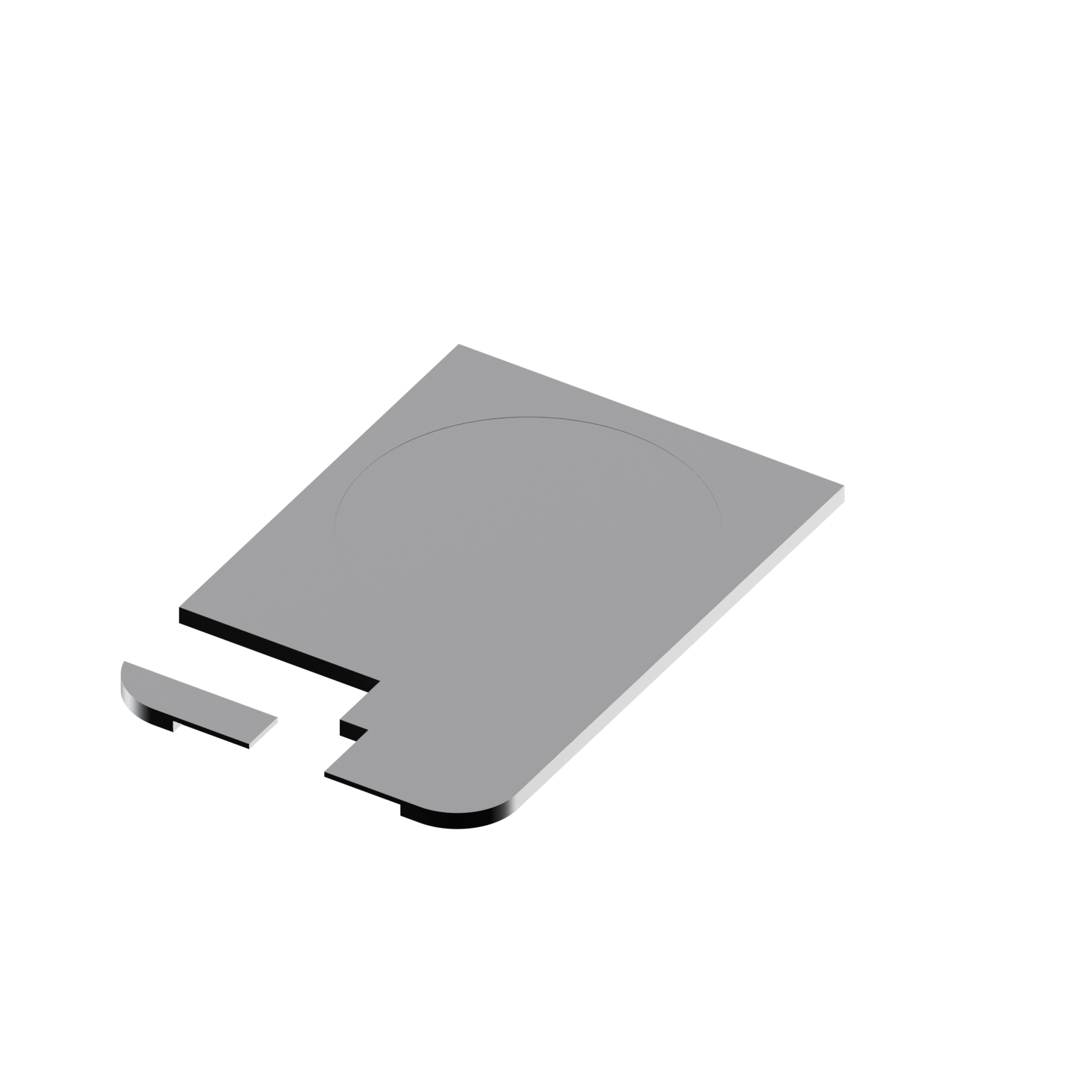

Battery cells

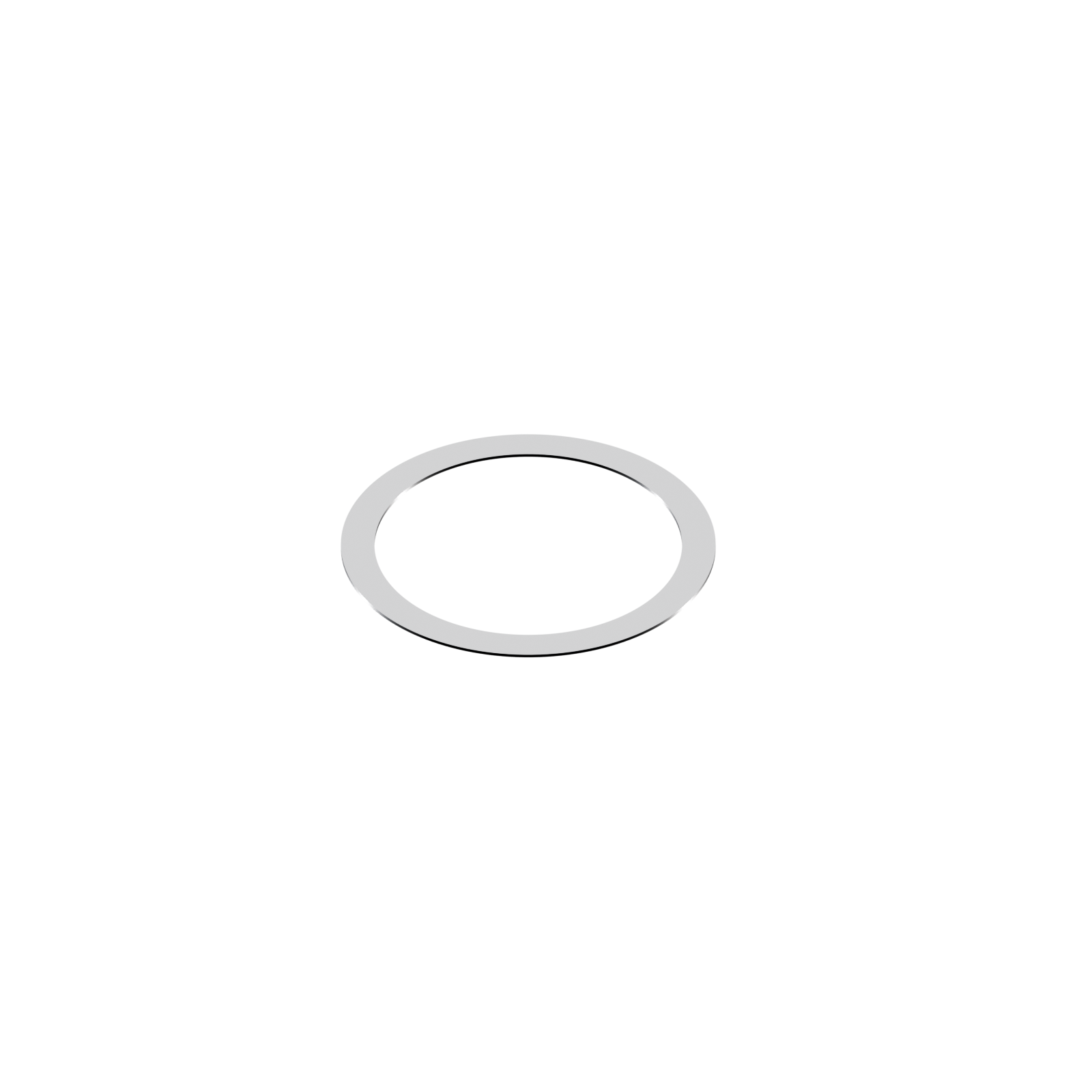

Magnet ring

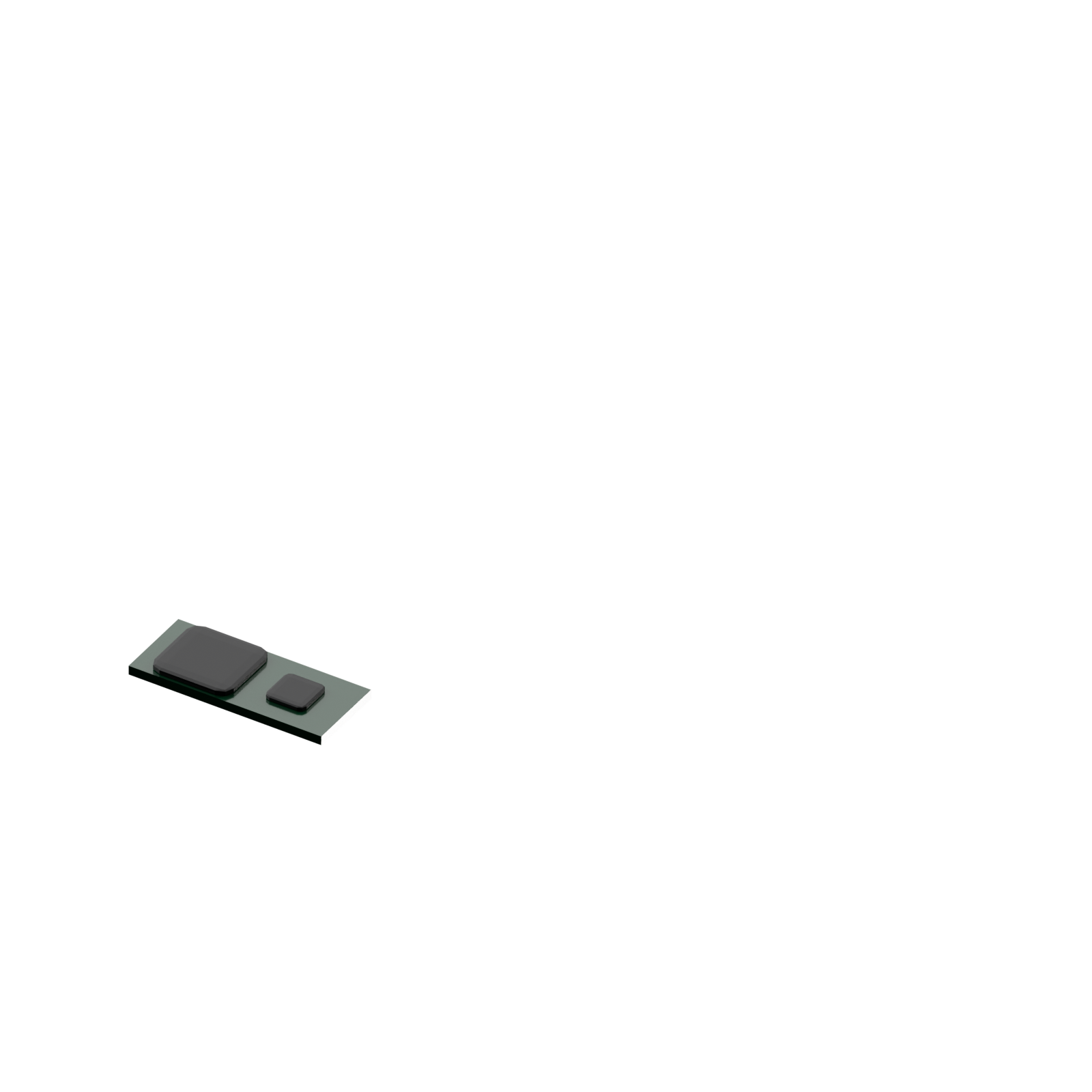

Board and radios
Heat spreader: 25 µm graphite under the whole skin, into the titanium back

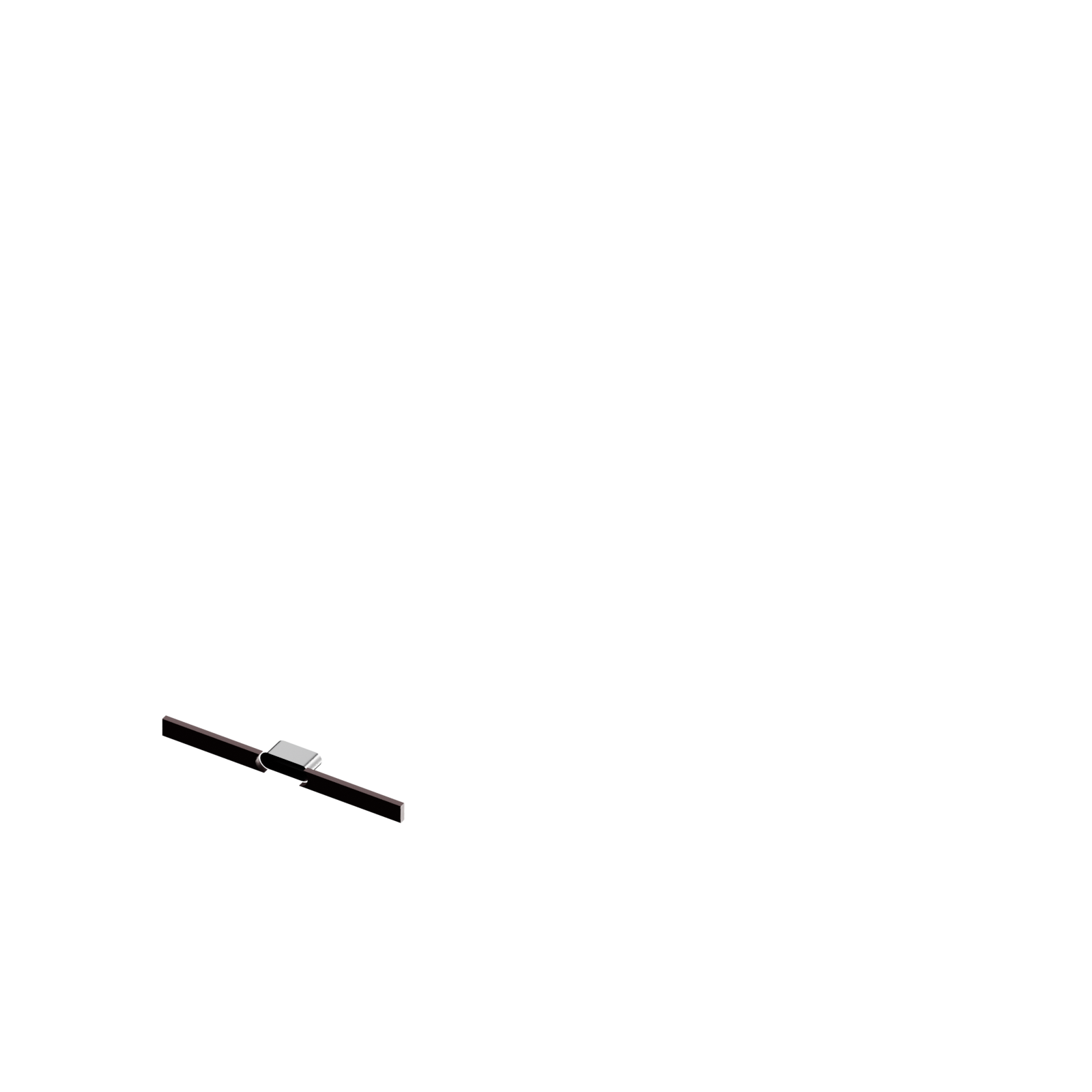

HaLow antenna window (no metal)
USB-C: charges from a wall charger or power bank

suñůlink.shield on the camera island

The whole back, a flat plate over the camera island level with the lens tops, with an opening for every lens, the flash and the sensors.

5.4 Wh: battery, 12.06 cm³ of cells
3.6 mm: thick, 0 mm above the lens tops
79 g: in titanium
about 5 h: relaying on its own cells

Footprint 70.7 × 146.8 mm. Magnet ring 56 mm. Charges over its USB-C from a wall charger or power bank. When its cells run out it takes a little from the phone over a short USB-C cable.

section through the magnet centre

Shield outline
Battery cells
Magnet ring
Board and radios
Heat spreader: 25 µm graphite under the whole skin, into the titanium back
HaLow antenna window (no metal)
USB-C: charges from a wall charger or power bank

From the parametric CAD that also exports STEP and STL for CNC and tooling. Cells at 0.45 Wh/cm³ (thin pouch). Relay time at about 1 W for the board and radios; battery life and charge time vary with use and settings. The build fails if the shield covers a lens, the flash, the depth sensor or the microphone, or clips a field of view. iPhone 18 Pro dimensions are measured from Apple’s published model; the makers’ accessory drawings take precedence when available.
